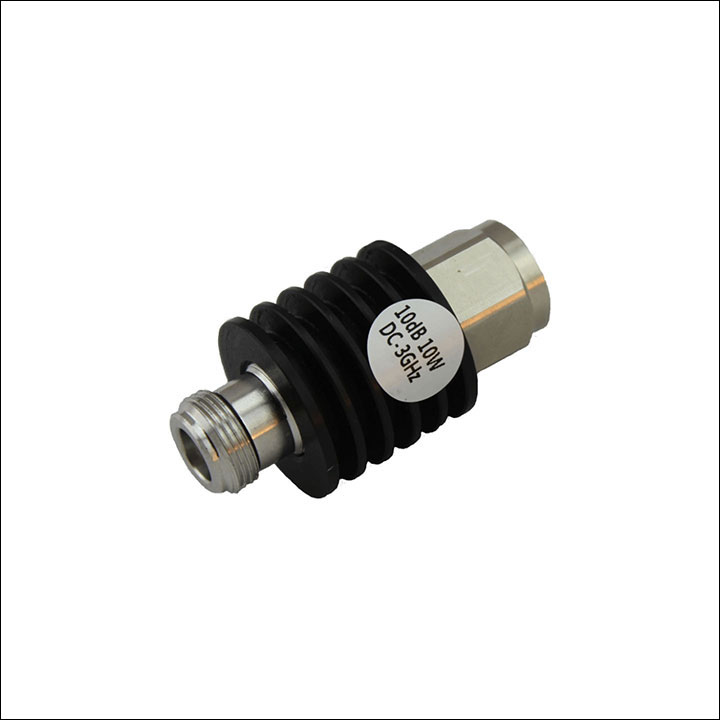

Experience precise control over signal strength with our high-performance 10W Attenuator, an essential device designed to cater to a wide range of communication and testing applications. With selectable attenuation levels of 3dB, 6dB, 10dB, 15dB, 20dB, 30dB, and 40dB, this attenuator empowers you to adjust signal levels with accuracy and flexibility. Whether you need to reduce signal power for testing purposes or optimize signal strength in your communication setup, our Attenuator ensures seamless signal management.
Key Features:
- Multiple Attenuation Options: The 10W Attenuator offers various attenuation options, including 3dB, 6dB, 10dB, 15dB, 20dB, 30dB, and 40dB. This wide range of choices allows you to fine-tune signal strength according to your specific needs, making it suitable for different signal strengths and communication systems.
- Versatile Usage: With a broad frequency range covering DC to 3GHz, this Attenuator is well-suited for diverse applications. Whether in RF testing, telecommunications, or other industries, this device provides reliable signal attenuation for seamless signal management.
- High Power Handling Capability: Capable of handling up to 10W of power, this attenuator ensures stable and reliable signal attenuation even at higher power levels. It is perfect for industrial applications and demanding testing environments where high-power signals are involved.
- N Male to N Female Connectors: Equipped with N Male to N Female connectors, the Attenuator guarantees secure and efficient connections. These connectors are widely recognized for their excellent performance and minimal signal loss, ensuring optimal signal transfer.
- Robust Build Quality: Our Attenuator is meticulously crafted using high-quality materials, ensuring durability and longevity. Its rugged construction enables it to withstand challenging conditions and continuous usage without compromising its performance.
- User-Friendly Installation: The Attenuator’s user-friendly design simplifies the installation process, allowing for quick and easy integration into your communication network or testing setup.
Technical Specifications:
| Items | Specifications | ||||||
|---|---|---|---|---|---|---|---|
| Frequency Range | DC-3GHz | ||||||
| Part No | SE-AT-03-010-0030-N | SE-AT-06-010-0030-N | SE-AT-10-010-0030-N | SE-AT-15-010-0030-N | SE-AT-20-010-0030-N | SE-AT-30-010-0030-N | SE-AT-40-010-0030-N |
| Attenuation | 3dB | 6dB | 10dB | 15dB | 20dB | 30dB | 40dB |
| Attenuation Range | ±0.4dB | ±0.5dB | ±0.7dB | ±0.7dB | ±0.8dB | ±1.0dB | ±1.0dB |
| VSWR | ≤1.2 | ||||||
| 3rd Order IMD | ≤-105dBc(+43dBm×2) | ||||||
| Input Power | 10W | ||||||
| Impedance | 50Ω | ||||||
| Protection Level | IP65 | ||||||
| Relative Humidity | 5 to 95% | ||||||
| Operating Temperature | -25℃-+65℃ | ||||||
| Connector Type | N Male to N Female | ||||||
