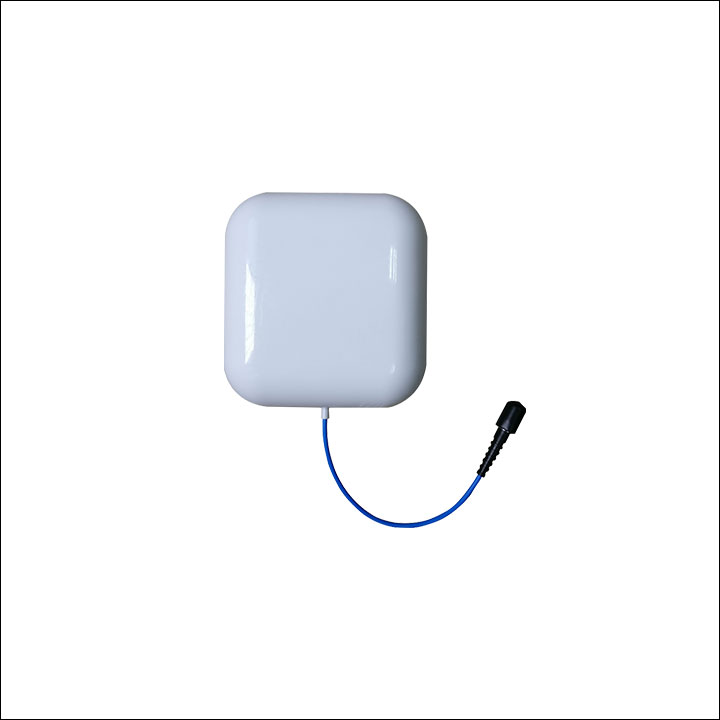

The Directional Panel Antenna is a cutting-edge wireless communication solution designed to provide enhanced connectivity and performance for your network. Operating within a frequency range of 698MHz to 4000MHz, this antenna is compatible with various wireless technologies, including 4G LTE, 5G, Wi-Fi, and more. Whether you need to improve the coverage of your existing network or establish a new one, the Directional Panel Antenna is an excellent choice for both residential and commercial applications.
Key Features:
- Wide Frequency Range: Covering a frequency range from 698MHz to 4000MHz, the Directional Panel Antenna offers excellent compatibility with diverse wireless networks, making it suitable for various applications and environments.
- High Gain Performance: This antenna provides a gain of 6dBi for the lower frequency band (698-960MHz) and 8dBi for the higher frequency band (1710-4000MHz). The high gain capability ensures robust signal strength and extended coverage, making it suitable for long-range communication.
- Vertical Polarization: Featuring vertical polarization, the Directional Panel Antenna allows for focused signal transmission and reception in a specific direction. This characteristic makes it ideal for point-to-point connections and areas requiring precise vertical connectivity.
- N Female Connector: Equipped with an N Female connector, the Directional Panel Antenna ensures a secure and reliable connection to compatible wireless devices or network equipment.
- Sleek Panel Design: The antenna’s sleek and compact panel design allows for easy installation on walls, poles, or other suitable structures, both indoors and outdoors.
- Durable Construction: Built to withstand various weather conditions, the Directional Panel Antenna’s sturdy construction ensures long-lasting performance and reliability, making it suitable for outdoor deployments.
Technical Specifications:
| Items | Specifications | |||
|---|---|---|---|---|
| Model NO | SE-DPA-0740-V6801-NF | |||
| Frequency Range(MHz) | 698-960 | 1710-2170 | 2200-2700 | 3400-4000 |
| Gain(dBi) | 6.0 ± 0.5 | 7.0 ± 0.5 | 7.5 ± 0.5 | 8.5 ± 0.5 |
| VSWR | ≤ 2.0 | ≤ 2.0 | ≤ 1.8 | ≤ 1.8 |
| Polarization Type | Vertical | |||
| Front to Back Ratio(dBi) | ≥ 8 | ≥ 10 | ≥ 15 | ≥ 10 |
| Vertical Beamwidth | 70° | 60° | 60° | 30° |
| Horizontal Beamwidth | 80° | 65° | 60° | 55° |
| PIM(IM3) | ≤ -107 dBm @ 2 x 33 dBm | |||
| Max Power | 50 W | |||
| Input Impendence | 50 Ω | |||
| Operating Temperature | -40 ℃ to +65 ℃ | |||
| Relative Humidity | 5 to 95% | |||
| Lightning Protection | DC ground | |||
| Rated Wind Velocity | 210km/h | |||
| Connector Type | N-Female | |||
| Weight | 0.4 Kg | |||
| Dimension | 180 x 170 x 60 mm (without connector) | |||
| Radome Material | Uv-Protected ABS | |||
| Radome Color | White | |||
| Mounting Type | Wall Mounting | |||
