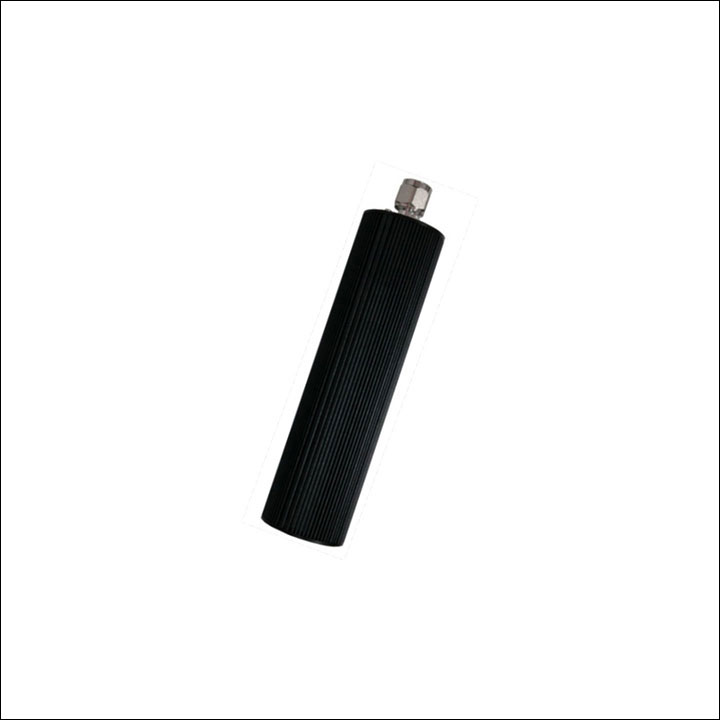

50W, Low PIM Termination Load, 698-2700MHz, N Male

Product Origin:

Product Brand:

Shipping Port:




Ensure reliable and efficient signal termination with our high-quality 50W Low PIM Termination Load. Designed to handle power levels up to 50 watts, this termination load offers low Passive Intermodulation (PIM) characteristics, making it a perfect choice for critical communication systems that require minimal interference. With a frequency range spanning from 698MHz to 2700MHz and equipped with N Male connectors, our termination load guarantees excellent performance, versatility, and durability.

Key Features

  • High Power Handling: With a power handling capacity of up to 50 watts, our termination load is capable of handling substantial power levels without compromising signal quality. This ensures stable and reliable operation, particularly in high-power applications.
  • Low PIM Performance: The Low PIM characteristics of our termination load ensure minimal intermodulation distortion, reducing the risk of signal degradation and interference. Experience clear and uninterrupted communication without compromise.
  • Wide Frequency Range: Our termination load covers a broad frequency range from 698MHz to 2700MHz, accommodating a variety of communication technologies, including 3G, 4G LTE, and more. Its versatility makes it suitable for diverse applications.
  • N Male Connectors: Equipped with N Male connectors, renowned for their robust and reliable connections, our termination load ensures secure signal transmission with reduced signal loss. These connectors contribute to the overall efficiency and performance of the load.

Technical Specifications

Part NoSE-TL-050-0727-NM
Frequency Range698-2700MHz
3rd Order IMD≤-160dBc(+43dBm×2)
Input Power50W
Protection LevelIP65
Relative Humidity5 to 95%
Operating Temperature-25℃-+65℃
Connector TypeN Male
