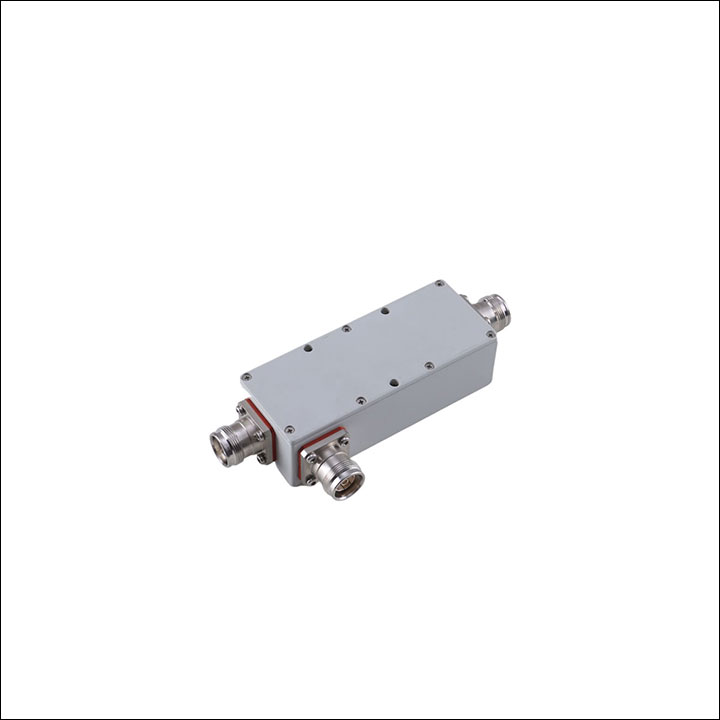

5/6/7/10/15/20/30/40dB, Directional Coupler, 698-2700MHz, 4.3-10 Female

Product Origin:

Product Brand:

Shipping Port:




The 5/6/7/10/15/20/30/40dB Directional Coupler is a high-performance RF component that excels in splitting and distributing signals with utmost precision. With a wide range of coupling ratios available, spanning from 5dB to 40dB, this directional coupler provides flexible signal strength control, making it ideal for various communication applications. Operating within the frequency range of 698MHz to 2700MHz, it supports multiple wireless communication bands, including 2G, 3G, 4G LTE, and more. Equipped with 4.3-10 Female connectors, this directional coupler ensures secure and reliable connections, enabling seamless signal distribution and superior network performance.

Key Features:

  • Adjustable Coupling Ratios: The directional coupler offers a variety of coupling options, including 5dB, 6dB, 7dB, 10dB, 15dB, 20dB, 30dB, and 40dB, providing precise control over signal division to meet specific requirements.
  • Wide Frequency Coverage: With a frequency range from 698MHz to 2700MHz, this coupler supports a broad spectrum of wireless communication bands, making it suitable for diverse communication systems.
  • Excellent Signal Integrity: The coupler boasts low insertion loss and high directivity, minimizing signal attenuation and reflections during transmission, resulting in efficient and reliable signal distribution.
  • Sturdy Construction: Designed for durability, this directional coupler ensures consistent performance even in demanding environments, making it suitable for both indoor and outdoor installations.
  • 4.3-10 Female Connectors: The 4.3-10 Female connectors provide secure and stable connections, reducing signal loss and ensuring optimal signal integrity during signal distribution.

Technical Specifications:

Frequency Range698-2700MHz
Part NoSE-DC-05-0727-MFSE-DC-06-0727-MFSE-DC-07-0727-MFSE-DC-10-0727-MFSE-DC-15-0727-MFSE-DC-20-0727-MFSE-DC-30-0727-MFSE-DC-40-0727-MF
Coupling Range±1±1±1±1.2±1.2±1.2±1.5±1.5
Insertion Loss≤2.3≤1.76≤1.5≤0.96≤0.44≤0.34≤0.3≤0.3
3rd Order IMD≤-160dBc(+43dBm×2)
Input Power300W
Protection LevelIP65
Relative Humidity5 to 95%
Operating Temperature-25℃-+65℃
Connector Type4.3-10 Female
