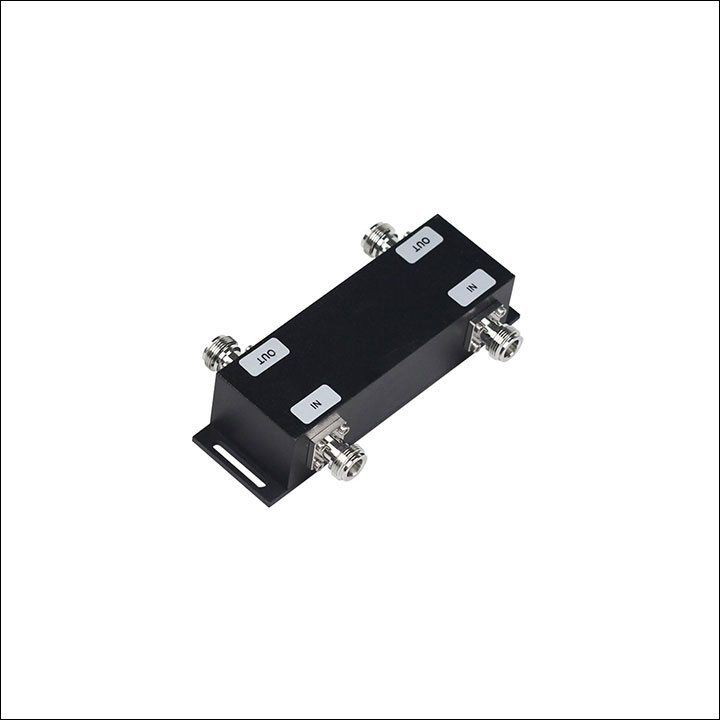

2 in 2 out, Hybrid Coupler, 698-2700MHz, N Female

Product Origin:

Product Brand:

Shipping Port:




The 2 in 2 out Hybrid Coupler is an advanced RF component designed to provide efficient signal combining and distribution capabilities in wireless communication systems. With its innovative design, this hybrid coupler allows two input signals to be combined and split into two output signals, offering flexibility in signal distribution for various communication applications. Operating within a frequency range of 698MHz to 2700MHz, it supports multiple wireless communication bands, making it suitable for diverse communication systems. Equipped with N Female connectors, this hybrid coupler ensures secure and reliable connections, enabling seamless signal distribution and optimal network performance.

Key Features:

  • Signal Distribution Flexibility: The hybrid coupler enables two input signals to be combined and divided into two output signals, providing versatility in signal distribution for different communication scenarios.
  • Broad Frequency Coverage: With a frequency range from 698MHz to 2700MHz, this hybrid coupler supports multiple wireless communication bands, ensuring compatibility with various communication systems.
  • High Signal Efficiency: Featuring low insertion loss and excellent directivity, the coupler minimizes signal degradation and reflections, resulting in efficient and reliable signal distribution.
  • Sturdy Construction: Built to withstand rigorous usage, this hybrid coupler guarantees consistent performance even in challenging environments, making it suitable for both indoor and outdoor installations.
  • N Female Connectors: The N Female connectors offer secure and stable connections, minimizing signal loss and maintaining optimal signal integrity during signal distribution.

Technical Specifications:

Part NoSE-HC-22-0727-NF
Frequency Range698-2700MHz
Insertion Loss≤4.6dB
3rd Order IMD≤-155dBc(+43dBm×2)
Input Power200W
Protection LevelIP65
Relative Humidity5 to 95%
Operating Temperature-25℃-+65℃
Connector TypeN Female
