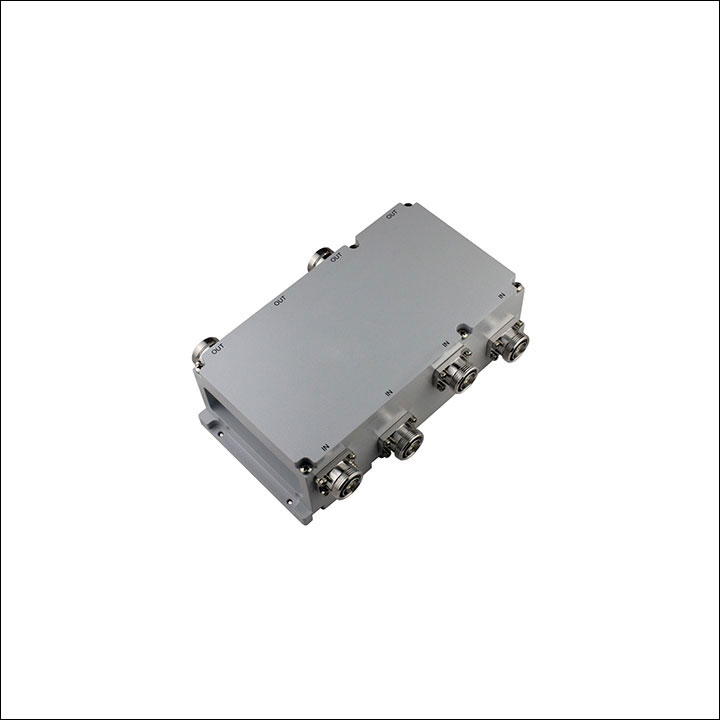

Experience unparalleled connectivity with our cutting-edge 4 in 4 out Hybrid Coupler, specially crafted to optimize your communication networks. Operating within an extensive frequency range of 698MHz to 2700MHz, this coupler ensures seamless signal distribution and coverage for a wide range of applications. Whether you require efficient signal splitting or combining, our Hybrid Coupler delivers exceptional performance for all your connectivity needs.
Key Features:
- Wide Frequency Range: The 4 in 4 out Hybrid Coupler boasts an impressive frequency range from 698MHz to 2700MHz, making it suitable for diverse communication setups. It effortlessly handles multiple frequency bands, providing consistent and reliable signal distribution across various devices and networks.
- Enhanced Signal Splitting and Combining: With its 4 in 4 out configuration, this coupler excels at splitting input signals into four output paths and combining signals from multiple sources. This feature is invaluable for distributed antenna systems (DAS), cellular networks, and other applications that require precise signal distribution and combining capabilities.
- Din Female Connectors: Equipped with Din Female connectors, the Hybrid Coupler ensures secure and stable connections with reduced signal loss. These connectors are widely used in telecommunications and RF applications for their excellent performance and ease of use.
- High-Quality Build: Our Hybrid Coupler is built to the highest quality standards, ensuring long-lasting durability and reliable performance. It is engineered to withstand demanding environmental conditions and prolonged usage, making it a dependable solution for your connectivity requirements.
- Effortless Integration: Installing the Hybrid Coupler into your existing communication infrastructure is a breeze. Its user-friendly design simplifies the integration process, saving time and effort during setup.
- Compact and Space-Saving: Despite its advanced capabilities, the Hybrid Coupler features a compact and space-saving design, allowing for easy installation in areas with limited space while maintaining optimal signal performance.
Technical Specifications:
| Items | Specifications |
|---|---|
| Part No | SE-HC-44-0727-DF |
| Frequency Range | 698-2700MHz |
| Insertion Loss | ≤6.8dB |
| Isolation | ≥25dB |
| VSWR | ≤1.25 |
| 3rd Order IMD | ≤-155dBc(+43dBm×2) |
| Input Power | 300W |
| Impedance | 50Ω |
| Protection Level | IP65 |
| Relative Humidity | 5 to 95% |
| Operating Temperature | -25℃-+65℃ |
| Connector Type | Din Female |
