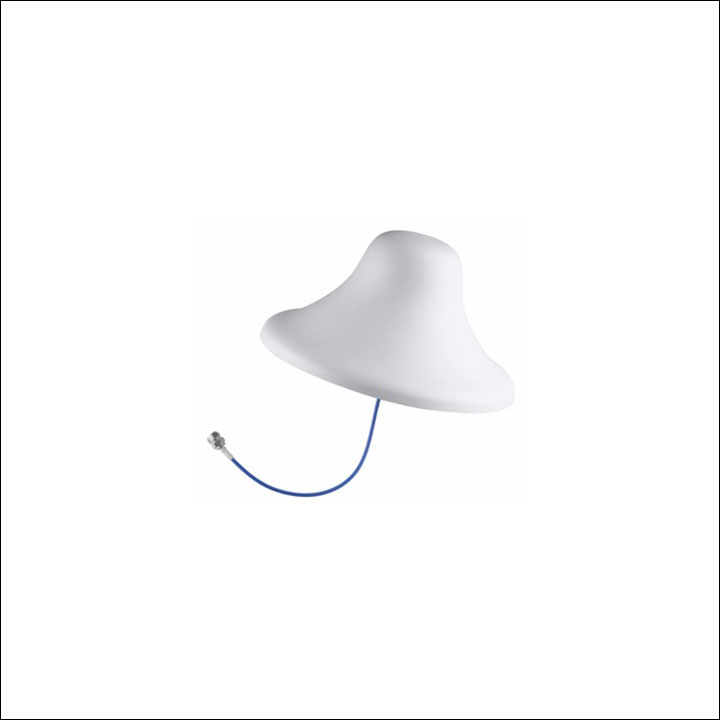

Omni Ceiling Antenna, 380-6000MHz, 2/5dBi, Vertical, N Female

Product Origin:

Product Brand:

Shipping Port:




The Omni Ceiling Antenna is an advanced wireless communication solution designed to provide reliable and seamless connectivity for your network. Operating within a broad frequency range of 380MHz to 6000MHz, this antenna is compatible with various wireless technologies, including 4G LTE, 5G, Wi-Fi, and more. Whether you need to enhance the coverage of your existing network or establish a new one, the Omni Ceiling Antenna is an excellent choice for both residential and commercial applications.

Key Features:

  • Wide Frequency Range: Covering a frequency range from 380MHz to 6000MHz, the Omni Ceiling Antenna offers excellent compatibility with diverse wireless networks, making it suitable for various applications and environments.
  • Dual Gain Performance: The antenna provides a gain of 2dBi for the lower frequency band (380-960MHz) and 5dBi for the higher frequency band (1710-6000MHz). This dual gain capability ensures reliable signal strength and expanded coverage.
  • Vertical Polarization: Featuring vertical polarization, the Omni Ceiling Antenna allows for focused signal transmission and reception in a specific direction. This characteristic makes it ideal for areas requiring precise vertical connectivity.
  • N Female Connector: Equipped with an N Female connector, the Omni Ceiling Antenna ensures a secure and reliable connection to compatible wireless devices or network equipment.
  • Sleek Ceiling-Mount Design: The antenna’s sleek and low-profile ceiling-mount design seamlessly blends into any indoor environment, making it ideal for offices, hotels, conference rooms, and other public spaces.
  • Easy Installation: Installing the Omni Ceiling Antenna is a hassle-free process, making it a convenient choice for both professional installers and do-it-yourself enthusiasts.

Technical Specifications:

Model NOSE-OCA-0460-V2501-NF
Frequency Range(MHz)380-520698-9601710-6000
Gain(dBi)2.0 ± 1.02. 5 ± 1.04.0 ± 1.0
VSWR≤ 2.0≤ 1.8≤ 1.8
Polarization TypeVertical
PIM(IM3)≤ -107 dBm @ 2 x 33 dBm
Horizontal Beamwidth360°
Vertical Beamwidth90°90°35°
Max Power50W
Input Impendence50Ω
Operating Temperature-40 ℃ to +65 ℃
Relative Humidity5 to 95%
Lightning ProtectionDC ground
Connector TypeN-Female
Weight0.4 Kg
DimensionΦ 298 x 152 mm (without connector)
Radome MaterialUv-Protected ABS
Radome ColorWhite
Mounting TypeCeiling Installation
