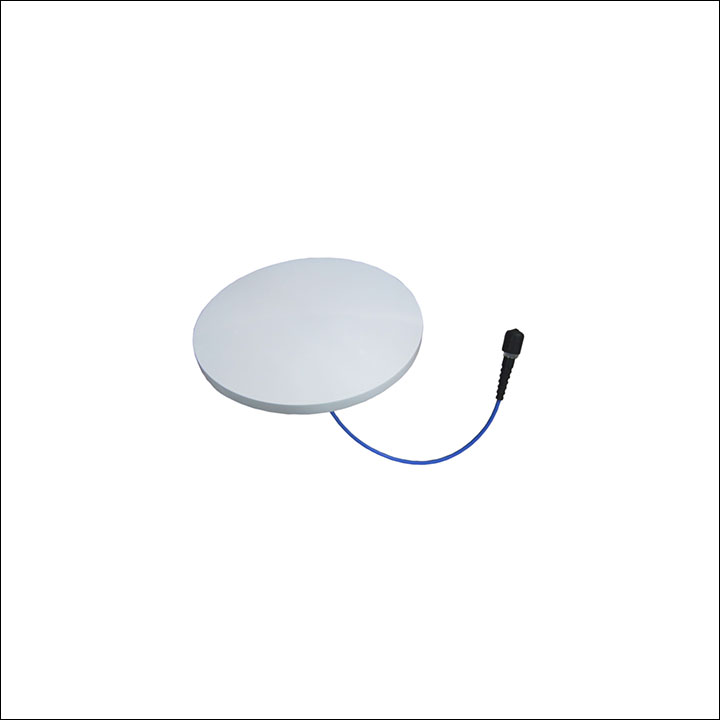

Omni Ceiling Antenna, 698-4000MHz, 2/6dBi, Horizontal, N Female

Product Origin:

Product Brand:

Shipping Port:




The Omni Ceiling Antenna is an advanced wireless communication solution designed to provide reliable and seamless connectivity for your network. Operating within a frequency range of 698MHz to 4000MHz, this antenna is compatible with various wireless technologies, including 4G LTE, 5G, Wi-Fi, and more. Whether you need to improve the coverage of your existing network or establish a new one, the Omni Ceiling Antenna is an excellent choice for both residential and commercial applications.

Key Features:

  • Wide Frequency Range: Covering a frequency range from 698MHz to 4000MHz, the Omni Ceiling Antenna offers excellent compatibility with diverse wireless networks, making it suitable for various applications and environments.
  • Dual Gain Performance: This antenna provides a gain of 2dBi for the lower frequency band (698-960MHz) and 6dBi for the higher frequency band (1710-4000MHz). The dual gain capability ensures reliable signal strength and expanded coverage.
  • Horizontal Polarization: Featuring horizontal polarization, the Omni Ceiling Antenna provides wide coverage and stable connectivity throughout the designated area.
  • N Female Connector: Equipped with an N Female connector, the Omni Ceiling Antenna ensures a secure and reliable connection to compatible wireless devices or network equipment.
  • Sleek Ceiling-Mount Design: The antenna’s sleek and low-profile ceiling-mount design seamlessly blends into any indoor environment, making it ideal for offices, hotels, conference rooms, and other public spaces.
  • Easy Installation: Installing the Omni Ceiling Antenna is a hassle-free process, making it a convenient choice for both professional installers and do-it-yourself enthusiasts.

Technical Specifications:

Model NOSE-OCA-0740-H2601-NF
Frequency Range(MHz)698-806806-9601710-27003400-4000
Gain(dBi)2.2 ± 0.53.5 ± 0.54.5 ± 1.06.0 ± 1.0
VSWR≤ 1.5≤ 1.5≤ 1.5≤ 1.5
Polarization TypeHorizontal
PIM(IM3)≤ -107 dBm @ 2 x 33 dBm
Max Power50W
Input Impendence50Ω
Operating Temperature-40 ℃ to +65 ℃
Relative Humidity5 to 95%
Lightning ProtectionDC ground
Connector TypeN-Female
Weight0.4 Kg
DimensionΦ 266 x 18 mm (without connector)
Radome MaterialUv-Protected ABS
Radome ColorWhite
Mounting TypeCeiling Installation
