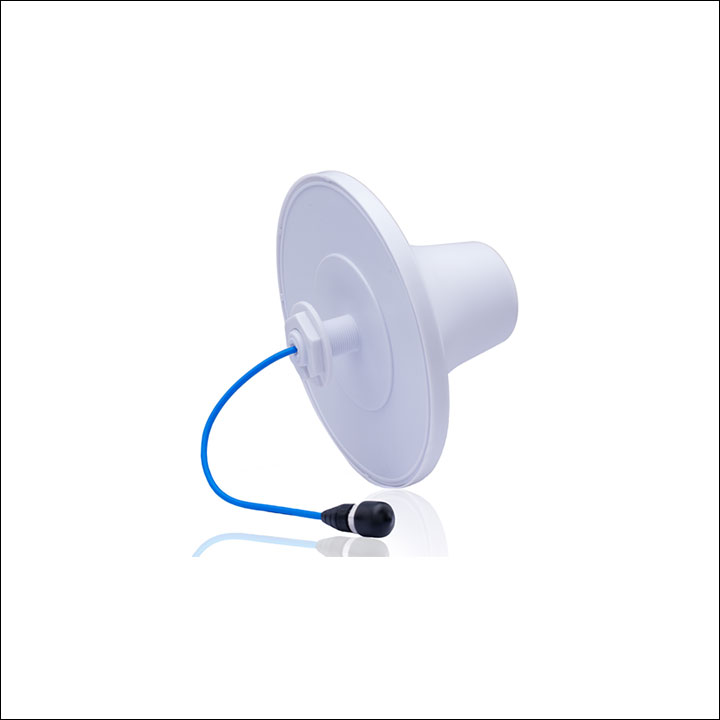

The Omni Ceiling Antenna is a state-of-the-art wireless communication solution that ensures seamless and reliable vertical connectivity for your network. With a frequency range of 617MHz to 4000MHz, this antenna is compatible with various wireless technologies, including 4G LTE, 5G, Wi-Fi, and more. Whether you need to improve the coverage of your existing network or establish a new one, the Omni Ceiling Antenna is the perfect choice for both residential and commercial applications.
Key Features:
- Wide Frequency Range: Operating within a broad frequency range of 617MHz to 4000MHz, the Omni Ceiling Antenna offers excellent compatibility with diverse wireless networks, making it suitable for various applications and environments.
- Dual Gain Performance: The antenna provides a gain of 2dBi for the lower frequency band (617-960MHz) and 5dBi for the higher frequency band (1710-4000MHz). This dual gain capability ensures reliable signal strength and expanded coverage.
- Vertical Polarization: Featuring vertical polarization, the Omni Ceiling Antenna allows for focused signal transmission and reception in a specific direction. This characteristic makes it ideal for environments requiring precise vertical connectivity.
- N Female Connector: Equipped with an N Female connector, the Omni Ceiling Antenna ensures a secure and reliable connection to compatible wireless devices or network equipment.
- Sleek Ceiling-Mount Design: Designed to be discreet and unobtrusive, the antenna’s sleek and low-profile ceiling-mount design seamlessly blends into any indoor environment. It is an ideal choice for offices, hotels, conference rooms, and other public spaces.
- Easy Installation: The Omni Ceiling Antenna is easy to install, making it a convenient choice for both professional installers and DIY enthusiasts. Its user-friendly design streamlines the installation process.
Technical Specifications:
| Items | Specifications | |||
|---|---|---|---|---|
| Model NO | SE-OCA-0640-V2501-NF | |||
| Frequency Range(MHz) | 617-806 | 806-960 | 1710-2700 | 3300-4000 |
| Gain(dBi) | 2.0 ± 0.5 | 3.0 ± 0.5 | 4.0 ± 1.0 | 4.0 ± 1.0 |
| VSWR | ≤ 2.0 | ≤ 1.8 | ≤ 1.5 | ≤ 1.5 |
| Polarization Type | Vertical | |||
| PIM(IM3) | ≤ -107 dBm @ 2 x 33 dBm | |||
| Horizontal Beamwidth | 360° | |||
| Vertical Beamwidth | 95° | 80° | 38° | 32° |
| Max Power | 50 W | |||
| Input Impendence | 50 Ω | |||
| Operating Temperature | -40 ℃ to +65 ℃ | |||
| Relative Humidity | 5 to 95% | |||
| Lightning Protection | DC ground | |||
| Connector Type | N-Female | |||
| Weight | 0.4 Kg | |||
| Dimensions | Φ 204 x 12.5 mm (without connector) | |||
| Radome Material | Uv-Protected ABS | |||
| Radome Color | White | |||
| Mounting Type | Ceiling Installation | |||
