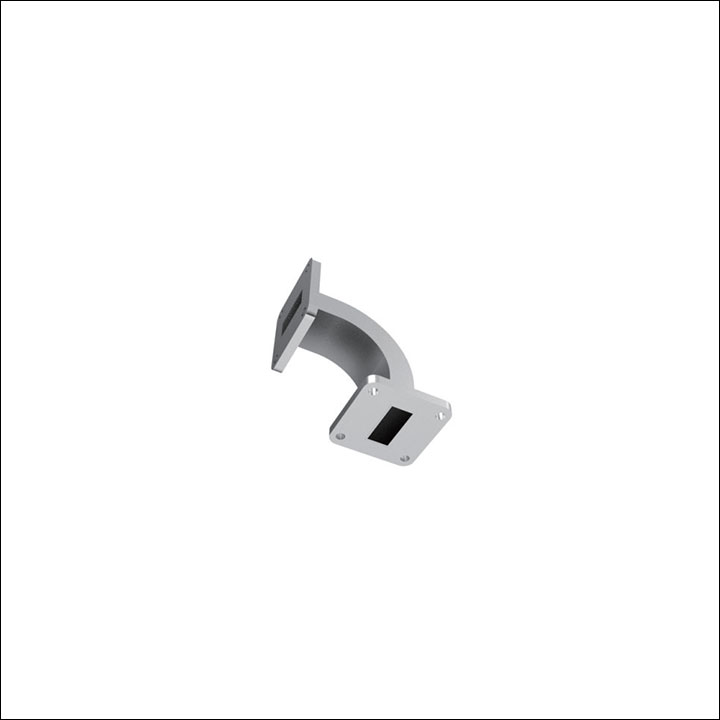

The Curved Waveguide is a cutting-edge optical device designed to revolutionize the way optical signals are propagated and transmitted. With its innovative curved design, this waveguide offers unparalleled performance and efficiency, making it a game-changer in various fields such as telecommunications, data centers, and medical imaging. This product description will delve into the key features and benefits of the Curved Waveguide, showcasing how it stands out from traditional waveguides in terms of performance and ease of use.
Key Features
- Curved Design: The most prominent feature of this waveguide is its unique curved structure, enabling efficient bending and directing of light signals. Unlike straight waveguides, the Curved Waveguide significantly reduces signal losses, ensuring improved data transmission over longer distances.
- Enhanced Signal Propagation: By leveraging the curved design, this waveguide optimizes the path of light, resulting in reduced dispersion and attenuation. This advancement leads to minimal signal distortion, maintaining signal integrity and maximizing the transmission efficiency.
- Wideband Support: The Curved Waveguide boasts broad spectral bandwidth support, accommodating a wide range of wavelengths. This versatility makes it compatible with various light sources and ideal for diverse applications, including dense wavelength division multiplexing (DWDM) systems.
Technical Specifications
| Type | National standard | Frequency range(GHz) | Standing wave ratio | Standard length(mm) | Minimum size(mm) | Flange | Material | Plating |
|---|---|---|---|---|---|---|---|---|
| SE-430WEBAXBPM | BJ22 | 1.72-2.61 | ≤1.10 | 150x150 | 145x145 | FDP/FDM | Aluminium | Oxidation |
| SE-430WHBAXBPM | BJ22 | 1.72-2.61 | ≤1.10 | 150x150 | 150x150 | FDP/FDM | Aluminium | Oxidation |
| SE-340WEBAXBPM | BJ26 | 2.17-3.30 | ≤1.10 | 100x100 | 80x80 | FDP/FDM | Aluminium | Oxidation |
| SE-340WHBAXBPM | BJ26 | 2.17-3.30 | ≤1.10 | 180x180 | 150x150 | FDP/FDM | Aluminium | Oxidation |
| SE-284WEBAXBPM | BJ32 | 2.60-3.95 | ≤1.10 | 100x100 | 100x100 | FDP/FDM | Aluminium | Oxidation |
| SE-284WHBAXBPM | BJ32 | 2.60-3.95 | ≤1.10 | 150x150 | 150x150 | FDP/FDM | Aluminium | Oxidation |
| SE-229WEBAXBPM | BJ40 | 3.22-4.90 | ≤1.10 | 80x80 | 80x80 | FDP/FDM | Aluminium | Oxidation |
| SE-229WHBAXBPM | BJ40 | 3.22-4.90 | ≤1.10 | 100x100 | 100x100 | FDP/FDM | Aluminium | Oxidation |
| SE187WEBAXBPM | BJ48 | 3.94-5 .99 | ≤1.10 | 80x80 | 70x70 | FDP/FDM | Aluminium | Oxidation |
| SE-187WHBAXBPM | BJ48 | 3.94-5.99 | ≤1.10 | 80x80 | 75x75 | FDP/FDM | Aluminium | Oxidation |
| SE-159WEBAXBPM | BJ58 | 4.64-7.05 | ≤1.10 | 80x80 | 65x65 | FDP/FDM | Aluminium | Oxidation |
| SE-1 59WHBAXBPM | BJ58 | 4.64-7 .05 | ≤1.10 | 80x80 | 80x80 | FDP/FDM | Aluminium | Oxidation |
| SE-137WEBAXBPM | BJ70 | 5.38-8.17 | ≤1.10 | 50x50 | 50x50 | FDP/FDM | Copper | Silvering |
| SE-137WHBAXBPM | BJ70 | 5.38-8.17 | ≤1.10 | 70x70 | 60x60 | FDP/FDM | Copper | Silvering |
| SE-112WEBAXBPM | BJ84 | 6.57-9.99 | ≤1.10 | 50x50 | 45x45 | FDP/FDM | Copper | Silvering |
| SE-112WHBAXBPM | BJ84 | 6.57-9.99 | ≤1.10 | 70x70 | 50x50 | FDP/FDM | Copper | Silvering |
| SE-90WEBAXBPM | BJ100 | 8.20-12. 40 | ≤1.10 | 40x40 | 35x35 | FDP/FDM | Copper | Silvering |
| SE -90WHBAXBPM | BJ100 | 8.20-12.40 | ≤1.10 | 50x50 | 40x40 | FDP/FDM | Copper | Silvering |
| SE-75WEBAXBPM | BJ120 | 9.84-15.0 | ≤1.10 | 40x40 | 35x35 | FDP/FDM | Copper | Silvering |
| SE-75WHBAXBPM | BJ120 | 9.84-15.0 | ≤1.10 | 40x40 | 40x40 | FDP/FDM | Copper | Silvering |
| SE-62WEBAXBPM | BJ140 | 11.9-18.0 | ≤1.10 | 40x40 | 30x30 | FDP/FDM | Copper | Silvering |
| SE-62WHBAXBPM | BJ140 | 11.9-18.0 | ≤1.10 | 40x40 | 35x35 | FDP/FDM | Copper | Silvering |
| SE-51WEBAXBPM | BJ180 | 14. 5-22.0 | ≤1.10 | 30x30 | 30x30 | FDP/FDM | Copper | Silvering |
| SE-51WHBAXBPM | BJ180 | 14 ,5-22.0 | ≤1.10 | 30x30 | 35x35 | FDP/FDM | Copper | Silvering |
| SE-42WEBAXBPM | BJ220 | 17.6-26.7 | ≤1.10 | 30x30 | 25x25 | FDP/FDM | Copper | Silvering |
| SE-42WHBAXBPM | BJ220 | 17.6-26.7 | ≤1.10 | 30x30 | 30x30 | FDP/FDM | Copper | Silvering |
| SE-34WEBAXBPM | BJ260 | 21.7-33.0 | ≤1.15 | 30x30 | 20x20 | FDP/FDM | Copper | Silvering |
| SE-34WHBAXBPM | BJ260 | 21.7-33.0 | ≤1.15 | 30x30 | 30x30 | FDP/FDM | Copper | Silvering |
| SE-28WEBAXBPM | BJ320 | 26.5-40.0 | ≤1.15 | 30x30 | 20x20 | FDP/FDM | Copper | Silvering |
| SE-28WHBAXBPM | BJ320 | 26.5-40.0 | ≤1.15 | 30x30 | 20x20 | FDP/FDM | Copper | Silvering |
| SE-22WEBAXBPM | BJ400 | 32.9-50.1 | ≤1.15 | 30x30 | 20x20 | FUGP | Copper | Gilding |
| SE-22WHBAXBPM | BJ400 | 32.9-50.1 | ≤1.15 | 30x30 | 25x25 | FUGP | Copper | Gilding |
| SE-18WEBAXBPM | BJ500 | 39.2-59.6 | ≤1.15 | 30x30 | 20x20 | FUGP | Copper | Gilding |
| SE-18WHBAXBPM | BJ500 | 39.2-59.6 | ≤1.15 | 30x30 | 20x20 | FUGP | Copper | Gilding |
| SE-14WEBAXBPM | BJ620 | 49.8-75.8 | ≤1.15 | 30x30 | 20x20 | FUGP | Copper | Gilding |
| SE-14WHBAXBPM | BJ620 | 49.8-75.8 | ≤1.15 | 30x30 | 20x20 | FUGP | Copper | Gilding |
| SE-12WEBAXBPM | BJ740 | 60.5-91.9 | ≤1.15 | 30x30 | 20x20 | FUGP | Copper | Gilding |
| SE-12WHBAXBPM | BJ740 | 60.5-91.9 | ≤1.15 | 30x30 | 20x20 | FUGP | Copper | Gilding |
| SE-10WEBAXBPM | BJ900 | 73.8-112 | ≤1.15 | 30x30 | 20x20 | FUGP | Copper | Gilding |
| SE-10WHBAXBPM | BJ900 | 73.8-112 | ≤1.15 | 30x30 | 20x20 | FUGP | Copper | Gilding |
| SE-8WHBAXBPM | BJ1200 | 92.2-140 | - | 20x20 | - | FUGP | Copper | Gilding |
| SE-8WHBAXBPM | BJ1200 | 92.2-140 | - | 20x20 | - | FUGP | Copper | Gilding |
| SE-7WEBAXBPM | BJ1400 | 113-173 | - | 20x20 | - | FUGP | Copper | Gilding |
| SE-7WHBAXBPM | BJ1400 | 113-173 | - | 20x20 | - | FUGP | Copper | Gilding |
