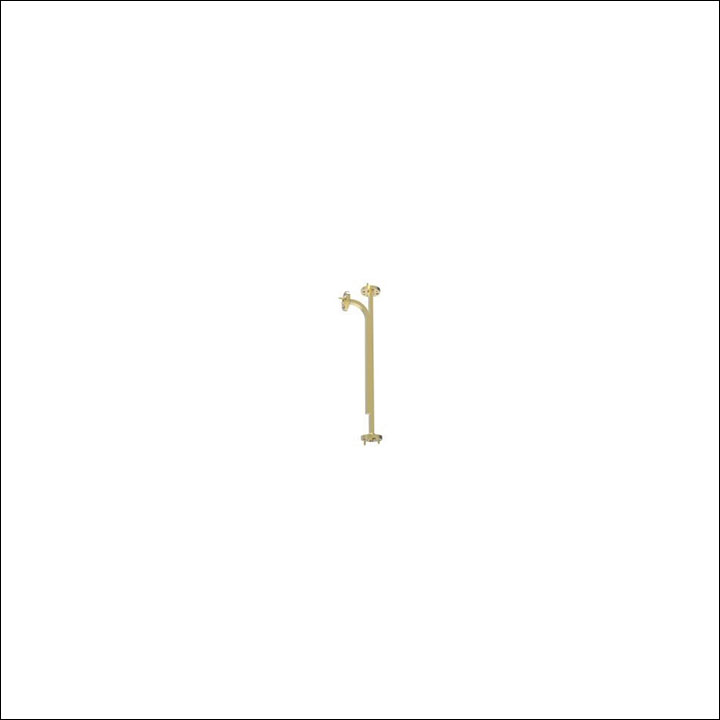

The Waveguide High Directivity Coupler is a sophisticated device designed to provide precise and efficient signal splitting in waveguide systems while maintaining exceptional directivity. As a critical component in microwave and radio frequency applications, this coupler enables accurate power division between coupled ports, while minimizing signal leakage and ensuring superior isolation. With its innovative design and superior performance, the Waveguide High Directivity Coupler finds applications in diverse fields, including telecommunications, radar systems, and satellite communication. In this product description, we will explore the key features and benefits of the Waveguide High Directivity Coupler, highlighting its role in enabling reliable signal splitting and maintaining signal integrity.
Key Features
- High Directivity: The Waveguide High Directivity Coupler boasts exceptional directivity, ensuring minimal power leakage between the coupled ports. This feature enhances signal isolation and prevents unwanted signal coupling between waveguide paths.
- Accurate Power Splitting: The coupler’s precise design allows for accurate power division between the main and coupled ports, providing reliable and consistent signal splitting in waveguide systems.
- Broadband Capability: Engineered to operate over a wide frequency range, the Waveguide High Directivity Coupler offers versatility and compatibility with various microwave and radio frequency applications.
Technical Specifications
| Type | National Standard | Frequency range (GHz) | Optional Coupling degree(dB) | Directivity (dB) | Main standing wave ratio | Secondary standing wave ratio | Flange | Coupling output joint | Material | Plating |
|---|---|---|---|---|---|---|---|---|---|---|
| TY-975WC...N | BJ9 | 0.75-1.15 | 3〜60 | 30〜60 | ≤1.10 | ≤1.25 | FDP | N-K | Aluminium | Oxidation |
| TY-770WC...N | BJ12 | 0.96-1046 | 3〜60 | 30〜60 | ≤1.10 | ≤1.25 | FP | N-K | Aluminium | Oxidation |
| TY-650WC...N | BJ14 | 1.13-1.73 | 3〜60 | 30〜60 | ≤1.10 | ≤1.25 | FP | N-K | Aluminium | Oxidation |
| TY-510WC...N | BJ18 | 1.45-2.20 | 3〜60 | 30〜60 | ≤1.10 | ≤1.25 | FP | N-K | Aluminium | Oxidation |
| TY-430WC...N | BJ22 | 1.72-2.61 | 3〜60 | 30〜60 | ≤1.10 | ≤1.25 | FP | N-K | Aluminium | Oxidation |
| TY-340WC...N | BJ26 | 2.17-3.30 | 3〜60 | 30〜60 | ≤1.10 | ≤1.25 | FP | N-K | Aluminium | Oxidation |
| TY-284WC...N | BJ32 | 2.60-3.95 | 3〜60 | 30〜60 | ≤1.10 | ≤1.25 | FP | N-K | Aluminium | Oxidation |
| TY-229WC...N | BJ40 | 3.22-4.90 | 3〜60 | 30〜60 | ≤1.10 | ≤1.25 | FP | N-K | Aluminium | Oxidation |
| TY-187WC...N | BJ48 | 3.94-5.99 | 3〜60 | 30〜60 | ≤1.10 | ≤1.25 | FP | N-K | Aluminium | Oxidation |
| TY-159WC...N | BJ58 | 4.64-7.05 | 3〜60 | 30〜60 | ≤1.10 | ≤1.25 | FP | N-K | Aluminium | Oxidation |
| TY-137WC...N | BJ70 | 5.38-8.17 | 3〜60 | 30〜60 | ≤1.10 | ≤1.25 | FP | N-K | Aluminium | Oxidation |
| TY-112WC...N | BJ84 | 6.57-9.99 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FPB | N-K | Copper | Silvering |
| TY-90WC...N | BJ100 | 8.20-12.40 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FPB | N-K | Copper | Silvering |
| TY-75WC...N | BJ120 | 9.84-15.0 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FPB | N-K | Copper | Silvering |
| TY-62WC...N | BJ140 | 11.918.0 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FPB | SMA-K | Copper | Silvering |
| TY-51wC...N | BJ180 | 14.5-22.0 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FPB | SMA-K | Copper | Silvering |
| TY-42wC...N | BJ220 | 17.6-26.7 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FPB | 2.92-K | Copper | Silvering |
| TY-34WC...N | BJ260 | 21.7-33.0 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FPB | 2.92-K | Copper | Silvering |
| TY-28WC...N | BJ320 | 26.5-40.0 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FPB | 2.92-K | Copper | Silvering |
| TY-22WC...N | BJ400 | 32.9-50.1 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FUGP | Waveguide port | Copper | Gilding |
| TY-18WC...N | BJ500 | 39.2-59.6 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FUGP | Waveguide port | Copper | Gilding |
| TY-14WC...N | BJ620 | 49.875.8 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FUGP | Waveguide port | Copper | Gilding |
| TY-12WC...N | BJ740 | 60.5-91.9 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FUGP | Waveguide port | Copper | Gilding |
| TY-10WC...N | BJ900 | 73.8-112 | 3~60 | 30〜60 | ≤1.10 | ≤1.25 | FUGP | Waveguide port | Copper | Gilding |
