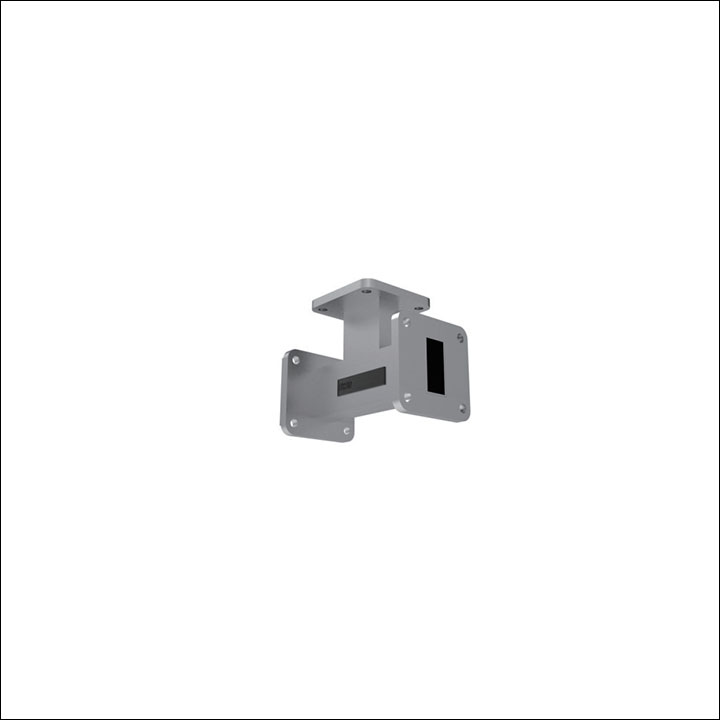

The Waveguide HT Joint is a sophisticated component engineered to provide seamless and reliable connections in high-frequency transmission systems. As an essential part of waveguide technology, this HT joint ensures efficient signal transfer and minimal signal loss, making it a critical solution for applications in radar systems, satellite communications, and other high-frequency transmission setups. In this product description, we will explore the key features and advantages of the Waveguide HT Joint, highlighting its role in maintaining signal integrity and enhancing overall system performance.
Key Features
- Precision Engineering: The Waveguide HT Joint is meticulously crafted using precision engineering techniques, ensuring a tight and accurate fit between waveguide sections. This precision minimizes signal reflections and attenuations, allowing for a smooth and uninterrupted transmission of high-frequency signals.
- Robust Construction: Built to withstand harsh environmental conditions, the HT joint is constructed from durable materials that ensure long-lasting performance. Its rugged design ensures reliability even in challenging outdoor installations or aerospace applications.
- Broad Frequency Range: The HT joint is designed to support a wide frequency range, accommodating various high-frequency applications. Whether it’s for radar, satellite communications, or high-speed data links, this joint is engineered to handle demanding frequency bands.
Technical Specifications
| Type | National Standard | Frequency range (GHz) | Working bandwith | Symmetry(dB) | Port E standing wave ratio | Insertion loss(dB) | Flange | Material | Plating |
|---|---|---|---|---|---|---|---|---|---|
| SE-2300WHT | BJ3 | 0.32-0.49 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-2100WHT | BJ4 | 0.35-0.53 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-1800WHT | BJ5 | 0.41-0.62 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-1500WHT | BJ6 | 0.49-0.75 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-1150WHT | BJ8 | 0.64-0.98 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-975WHT | BJ9 | 0.75-1.15 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-770WHT | BJ12 | 0.96-1.46 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-650WHT | BJ14 | 1.13-1.73 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-510WHT | BJ18 | 1.45-2.20 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-430WHT | BJ22 | 1.72-2.61 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-340WHT | BJ26 | 2.17-3.30 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-284WHT | BJ32 | 2.60-3.95 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-229WHT | BJ40 | 3.22-4.90 | ≤15% | ±0.25 | ≤1.15 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-187WHT | BJ48 | 3.94-5.99 | ≤15% | ±0.35 | ≤1.20 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-159WHT | BJ58 | 4.64-7.05 | ≤15% | ±0.35 | ≤1.20 | ≤0.2 | FDP | Aluminium | Oxidation |
| SE-137WHT | BJ70 | 5.38-8.17 | ≤15% | ±0.35 | ≤1.20 | ≤0.3 | FDP | Copper | Silvering |
| SE-112WHT | BJ84 | 6.57-9.99 | ≤15% | ±0.35 | ≤1.20 | ≤0.3 | FBP | Copper | Silvering |
| SE-90WHT | BJ100 | 8.20-12.40 | ≤15% | ±0.35 | ≤1.20 | ≤0.3 | FBP | Copper | Silvering |
| SE-75WHT | BJ120 | 9.84-15.0 | ≤15% | ±0.35 | ≤1.20 | ≤0.3 | FBP | Copper | Silvering |
| SE-62WHT | BJ140 | 11.9-18.0 | ≤15% | ±0.40 | ≤1.25 | ≤0.3 | FBP | Copper | Silvering |
| SE-51WHT | BJ180 | 14.5-22.0 | ≤15% | ±0.40 | ≤1.25 | ≤0.4 | FBP | Copper | Silvering |
| SE-42WHT | BJ220 | 17.6-26.7 | ≤15% | ±0.40 | ≤1.25 | ≤0.4 | FBP | Copper | Silvering |
| SE-34WHT | BJ260 | 21.7-33.0 | ≤15% | ±0.40 | ≤1.25 | ≤0.4 | FBP | Copper | Silvering |
| SE-28WHT | BJ320 | 26.5-40.0 | ≤15% | ±0.40 | ≤1.25 | ≤0.4 | FBP | Copper | Silvering |
| SE-22WHT | BJ400 | 32.9-50.1 | ≤10% | ±0.50 | ≤1.35 | ≤0.5 | FUGP | Copper | Gilding |
| SE-18WHT | BJ500 | 39.2-59.6 | ≤10% | ±0.50 | ≤1.35 | ≤0.5 | FUGP | Copper | Gilding |
| SE-14WHT | BJ620 | 49.8-75.8 | ≤10% | ±0.50 | ≤1.35 | ≤0.5 | FUGP | Copper | Gilding |
| SE-12WHT | BJ740 | 60.5-91.9 | ≤10% | ±0.50 | ≤1.35 | ≤0.5 | FUGP | Copper | Gilding |
| SE-10WHT | BJ900 | 73.8-112 | ≤10% | ±0.50 | ≤1.35 | ≤0.5 | FUGP | Copper | Gilding |
