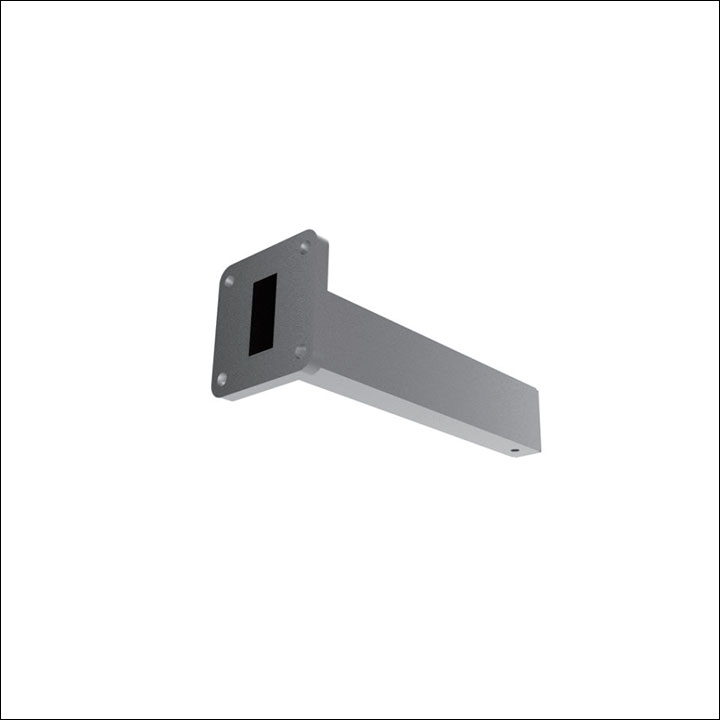

The Waveguide Termination Load is a critical component designed to terminate and absorb electromagnetic signals in waveguide systems effectively. As an essential termination solution, it prevents signal reflections and ensures optimal system performance by absorbing and dissipating excess energy. The Waveguide Termination Load finds applications in various fields, including telecommunications, radar systems, and microwave engineering. In this product description, we will explore the key features and benefits of the Waveguide Termination Load, highlighting its role in maintaining signal integrity and enhancing overall system efficiency.
Key Features
- High Absorption Capability: The Waveguide Termination Load is engineered with high absorption capability, efficiently dissipating electromagnetic energy without causing signal reflections back into the waveguide system.
- Precise Impedance Matching: It offers precise impedance matching, ensuring minimal signal reflection and preventing signal degradation in waveguide systems.
- Durable Construction: Built to withstand demanding conditions, the termination load is constructed from durable materials that ensure long-lasting performance and reliability.
Technical Specifications
| TYPE | Nationalstandard | Frequencyrange(GHz) | Standingwaveratio | Length | Averagepower(W) | Flange | Material | Plating |
|---|---|---|---|---|---|---|---|---|
| SE-2300WL1.05 | BJ3 | 0.32-0.49 | ≤1.05 | 2200 | 20W | FDP | Aluminium | Oxidation |
| SE-2100WL1.05 | BJ4 | 0.35-0.53 | ≤1.05 | 1900 | 20W | FDP | Aluminium | Oxidation |
| SE-1800WL1.05 | BJ5 | 0.41-0.62 | ≤1.05 | 1300 | 15W | FDP | Aluminium | Oxidation |
| SE-1500WL1.05 | BJ6 | 0.49-0.75 | ≤1.05 | 1300 | 15W | FDP | Aluminium | Oxidation |
| SE-1150WL1.05 | BJ8 | 0.64-0.98 | ≤1.05 | 1100 | 15W | FDP | Aluminium | Oxidation |
| SE-975WL1.05 | BJ9 | 0.75-1.15 | ≤1.05 | 900 | 15W | FDP | Aluminium | Oxidation |
| SE-770WL1.03 | BJ12 | 0.96-1.46 | ≤1.03 | 680 | 10W | FDP | Aluminium | Oxidation |
| SE-650WL1.03 | BJ14 | 1.13-1.73 | ≤1.03 | 570 | 10W | FDP | Aluminium | Oxidation |
| SE-510WL1.03 | BJ18 | 1.45-2.20 | ≤1.03 | 540 | 10W | FDP | Aluminium | Oxidation |
| SE-430WL1.03 | BJ22 | 1.72-2.61 | ≤1.03 | 450 | 10W | FDP | Aluminium | Oxidation |
| SE-340WL1.03 | BJ26 | 2.17-3.30 | ≤1.03 | 350 | 5W | FDP | Aluminium | Oxidation |
| SE-284WL1.03 | BJ32 | 2.60-3.95 | ≤1.03 | 300 | 5W | FDP | Aluminium | Oxidation |
| SE-229WL1.03 | BJ40 | 3.22-4.90 | ≤1.03 | 250 | 5W | FDP | Aluminium | Oxidation |
| SE-187WL1.03 | BJ48 | 3.94-5.99 | ≤1.03 | 220 | 5W | FDP | Aluminium | Oxidation |
| SE-159WL1.03 | BJ58 | 4.64-7.05 | ≤1.03 | 200 | 5W | FDP | Aluminium | Oxidation |
| SE-137WL1.03 | BJ70 | 5.38-8.17 | ≤1.03 | 180 | 5W | FDP | Copper | Silvering |
| SE-112WL1.03 | BJ84 | 6.57-9.99 | ≤1.03 | 150 | 5W | FDP | Copper | Silvering |
| SE-90WL1.03 | BJ100 | 8.20-12.40 | ≤1.03 | 130 | 2W | FBP | Copper | Silvering |
| SE-75WL1.03 | BJ120 | 9.84-15.0 | ≤1.03 | 110 | 2W | FBP | Copper | Silvering |
| SE-62WL1.03 | BJ140 | 11.9-18.0 | ≤1.03 | 90 | 2W | FBP | Copper | Silvering |
| SE-51WL1.03 | BJ180 | 14.5-22.0 | ≤1.03 | 75 | 2W | FBP | Copper | Silvering |
| SE-42WL1.03 | BJ220 | 17.6-26.7 | ≤1.03 | 65 | 1W | FBP | Copper | Silvering |
| SE-34WL1.03 | BJ260 | 21.7-33.0 | ≤1.03 | 55 | 1W | FBP | Copper | Silvering |
| SE-28WL1.03 | BJ320 | 26.5-40.0 | ≤1.03 | 50 | 1W | FBP | Copper | Silvering |
| SE-22WL1.15 | BJ400 | 32.9-50.1 | ≤1.15 | 40 | 0.5W | FUGP | Copper | Gilding |
| SE-18WL1.15 | BJ500 | 39.2-59.6 | ≤1.15 | 40 | 0.5W | FUGP | Copper | Gilding |
| SE-14WL1.15 | BJ620 | 49.8-75.8 | ≤1.15 | 38 | 0.5W | FUGP | Copper | Gilding |
| SE-12WL1.15 | BJ740 | 60.5-91.9 | ≤1.15 | 30 | 0.5W | FUGP | Copper | Gilding |
| SE-10WL1.20 | BJ900 | 73.8-112 | ≤1.15 | 30 | 0.5W | FUGP | Copper | Gilding |
| SE-8WL1.20 | BJ1200 | 92.2-140 | ≤1.20 | 25 | 0.3W | FUGP | Copper | Gilding |
| SE-7WL1.20 | BJ1400 | 113-173 | ≤1.20 | 22 | 0.3W | FUGP | Copper | Gilding |
| SE-5WL1.20 | BJ1800 | 145-220 | ≤1.25 | 20 | 0.3W | FUGP | Copper | Gilding |
| SE-4WL1.20 | BJ2200 | 172-261 | ≤1.25 | 20 | 0.3W | FUGP | Copper | Gilding |
| SE-3WL1.20 | BJ2600 | 217-330 | ≤1.25 | 20 | 0.3W | FUGP | Copper | Gilding |
